Organic Fertilizer Granulator
Drum Granulator
Learn More >
The OFEC Drum Granulator is the core granulation equipment designed for large-scale organic fertilizer production. Using a wet agglomeration process, materials roll, tumble, and agglomerate into spherical pellets through the rotating motion of the drum.
Key Features:
● Single-unit capacity of 3–30 t/h, suitable for large-scale continuous production
● Granulation rate of 85%–95%, with high pellet roundness and compressive strength up to 25N
● Wide raw material adaptability – processes livestock manure, straw, biogas residue, and various organic materials
● High pellet strength – ideal for long-distance transport and long-term storage
● Supports complete integration with drying, cooling, and screening systems for fully automated production lines
Application Scenarios:
● Large-scale continuous production in large organic fertilizer plants
● Projects with annual output exceeding 100,000 tons
● Applications requiring high-strength pellets for long-distance transport
Applicable Materials: Fermented livestock manure, straw powder, humic acid, biogas residue, municipal sludge, and various other organic materials

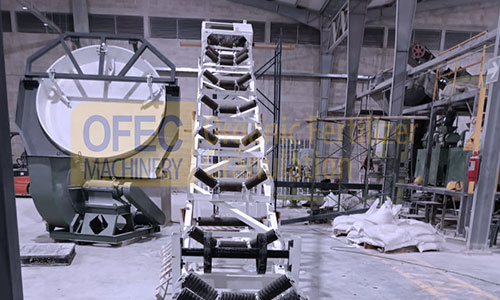

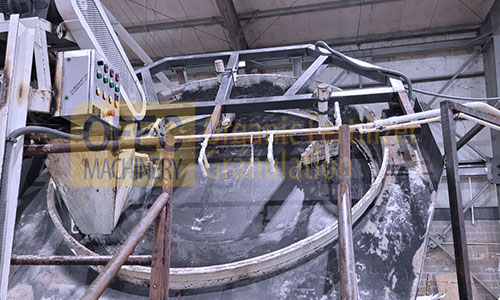

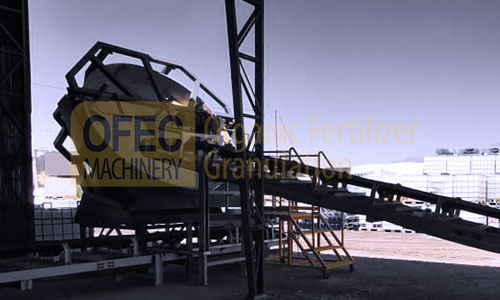

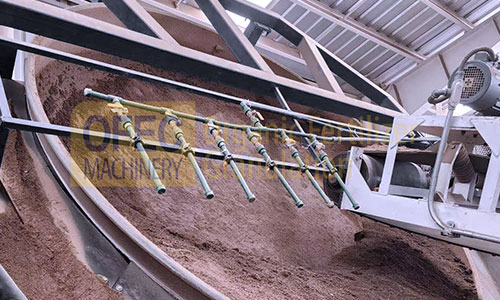

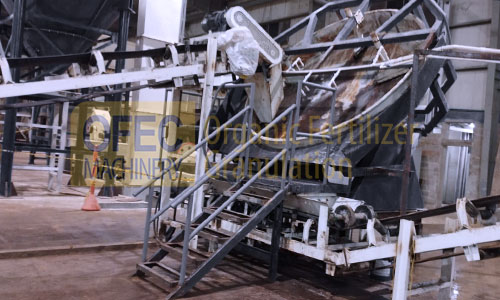

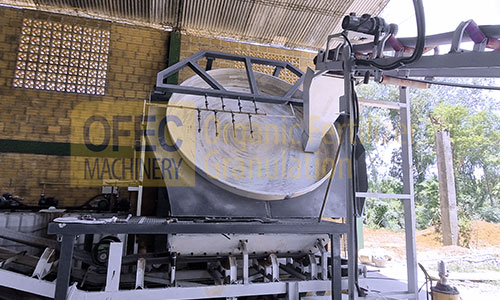

Disc Granulator
Learn More >
The OFEC Disc Granulator is an economical granulation solution designed for small to medium-scale organic fertilizer projects. Using a wet agglomeration process, materials continuously tumble and agglomerate on an inclined rotating disc under the combined action of centrifugal force and friction.
Key Features:
● Single-unit capacity of 0.5–8 t/h, suitable for small to medium-scale production
● Granulation rate of 80%–95%, producing well-rounded, aesthetically pleasing spherical granules
● Simple structure with low investment cost and small footprint (approx. 5 m²)
● Intuitive operation – operable by 1–2 persons, easy maintenance
● Adjustable inclination and speed for flexible formula changeover
Application Scenarios:
● Small to medium-scale organic fertilizer plants and farm-based production
● Projects with annual output below 50,000 tons
● Applications requiring frequent formula changes and high pellet appearance quality
● Startups or small-scale investors with limited budgets
Applicable Materials: Fermented livestock manure, humic acid, bio-organic fertilizer, straw powder, biogas residue, etc.
Roller Granulator
The OFEC Roller Granulator is a granulation solution designed for high-moisture organic materials and energy-efficient production. Using a dry pressure granulation process, two counter-rotating high-pressure rollers compress powdered organic materials at ambient temperature.
Key Features:
● Single-unit capacity of 1–5 t/h, with multi-unit parallel expansion capability
● No drying or only low-temperature drying required – finished pellet moisture content of only 2%–5%, reducing overall energy consumption by 30%–50%
● Dense, high-strength pellets with a granulation rate exceeding 93%
● Dry process with zero wastewater, zero exhaust gas, and zero solid waste discharge
● Cold granulation process – microbial survival rate exceeding 90%, suitable for bio-organic fertilizer production
Application Scenarios:
● Regions with high energy costs or limited heat sources
● Applications requiring “no-dry pellet fertilizer” production
● Small to medium-scale processing plants and bio-organic fertilizer production
● Organic fertilizer projects with microbial activity requirements
Applicable Materials: Fermented livestock manure, humic acid, bio-organic fertilizer, straw powder, biogas residue, etc. Recommended moisture content ≤5%–10%.
Comparison of Three Granulator Types
Comparison Aspect | Drum Granulator | Disc Granulator | Roller Granulator |
Granulation Method | Wet agglomeration | Wet agglomeration | Dry pressure forming |
Single-Unit Capacity | 3–30 t/h | 0.5–8 t/h | 1–5 t/h (parallel configurable) |
Granulation Rate | 85%–95% | 80%–95% | >93% |
Pellet Shape | Spherical/oval, high strength | Spherical, well-rounded, aesthetically pleasing | Columnar/irregular, dense |
Pellet Strength | High (≥25N) | Moderate | High |
Raw Material Moisture Requirement | 25%–35% | 25%–35% | ≤5%–10% |
Drying Requirement | Requires drying system | Requires drying system | No drying or only low-temperature drying |
Energy Consumption | Higher | Moderate | Low (saves 30%–50%) |
Equipment Investment | High | Low | Moderate |
Footprint | Large | Small (approx. 5 m²) | Small (2–3 m²) |
Operation & Maintenance | Highly automated | Simple and intuitive | Easy and convenient |
Production Flexibility | Lower, suited for long-term fixed products | High, quick formula changeover | Moderate |
Microbial Survival Rate | Affected by drying heat | Affected by drying heat | >90% (cold granulation) |
Environmental Control | Closed system | Open system | Zero emissions, fully enclosed |
Applicable Scale | Large-scale (≥100,000 t/year) | Small to medium-scale (≤50,000 t/year) | Small to large-scale (parallel configurable) |
Granulation Rate
Pellet Shape
How to Choose the Right Granulator?
Choose the Drum Granulator if you
● Require large-scale, continuous production (annual output exceeding 100,000 tons)
● Have diverse raw material types with moderate moisture content (25%–35%)
● Have high requirements for pellet strength and storage/transport performance
● Have sufficient investment budget and factory space
Choose the Disc Granulator if you
● Have small to medium-scale production (annual output below 50,000 tons)
● Prioritize aesthetically pleasing, well-rounded pellet appearance for end-user markets
● Require frequent formula changes and flexible adjustment
● Have limited investment budget and want rapid production startup
Choose the Roller Granulator if you
● Have low raw material moisture content (≤10%) or want to eliminate the drying process
● Operate in regions with high energy costs or limited heat sources
● Produce bio-organic fertilizers requiring microbial activity preservation
● Want to reduce overall energy consumption and operating costs
For further evaluation of specific material characteristics and customized granulation solutions, please contact the OFEC technical team.
